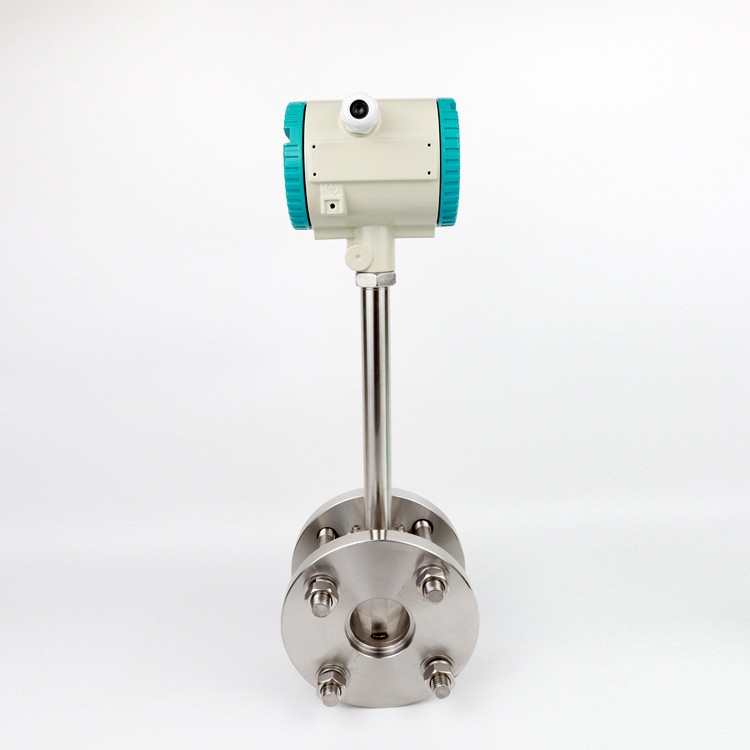

Remote Type Pulse Output Vortex Flowmeter
Remote Type Pulse Output Vortex Flowmeter
適用介質gas, liquid, steam
不適用介質
Advantage

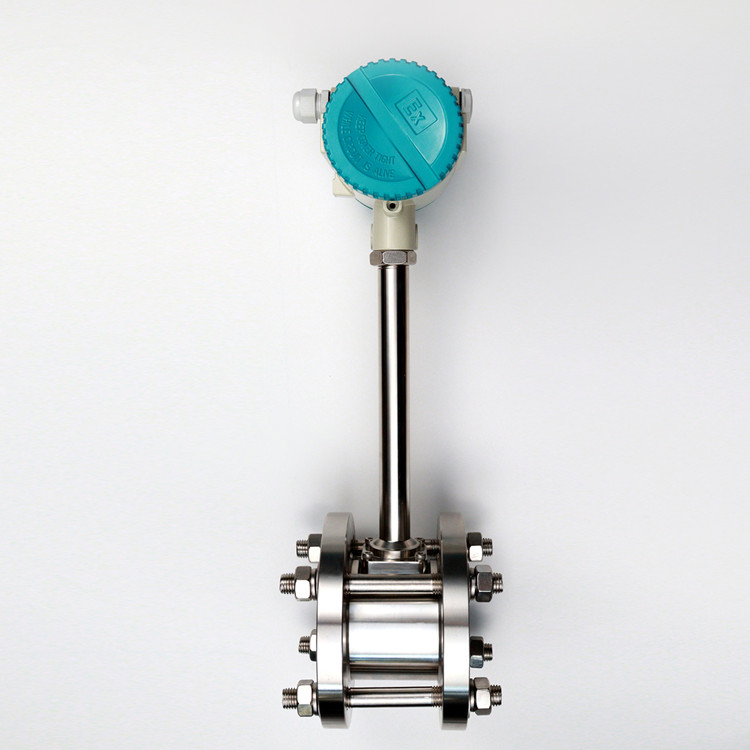

Flange, flange wafer and insertion, 3 different connection methods are optional
Basic pulse output
Without LCD display
Features
?
1. Simple structure,? no moving parts, high reliability
2. High accuracy 1.0%, 1.5%
3. Wide measuring range, up to 1:10 ratio
4. Resist high temperature up to 350℃,normal temperature up to 250℃
5. Integral forging, anti-rust, long service life
6,Less pressure loss, lower operating costs, more energy-saving significance.

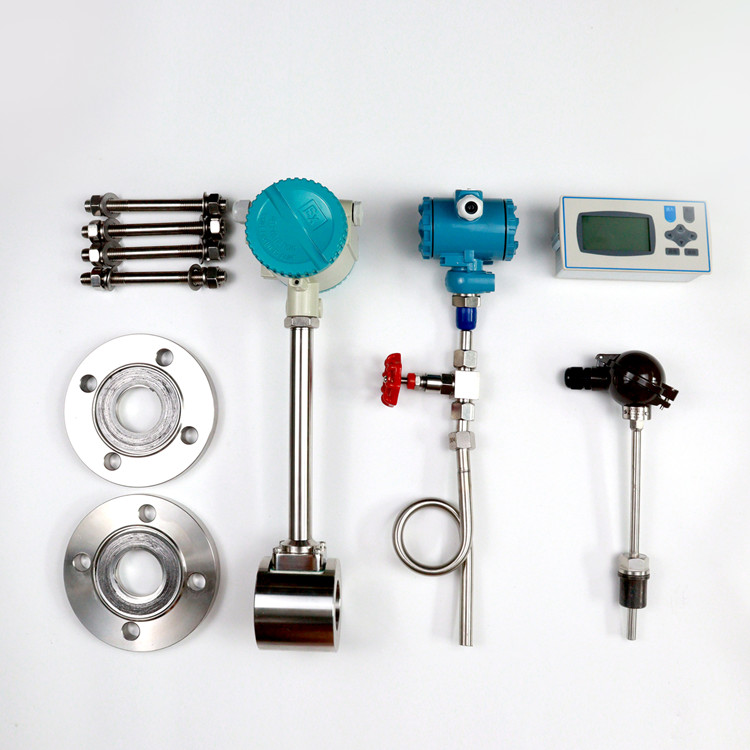

7. Basic wafer vortex flow sensor with pulse output. Pressure transmitter, temperature transmitter and totalizer could be used according to requirements.
Flow range table
|
DN size (mm) |
Liquid |
Gas |
||
Standard |
Extension |
Standard |
Extension |
|
15 |
0.8-6 |
0.5-8 |
6-40 |
5-50 |
20 |
1-8 |
0.6-12 |
8-50 |
6-60 |
25 |
1.5-12 |
0.8-16 |
10-80 |
8-120 |
40 |
2.5-30 |
2-40 |
25-200 |
20-300 |
50 |
3-50 |
2.5-60 |
30-300 |
25-500 |
65 |
5-80 |
4-100 |
50-500 |
40-800 |
80 |
8-120 |
6-160 |
80-800 |
60-1200 |
100 |
12-200 |
8-250 |
120-1200 |
100-2000 |
125 |
20-300 |
12-400 |
160-1600 |
150-3000 |
150 |
30-400 |
18-600 |
250-2500 |
200-4000 |
200 |
50-800 |
30-1200 |
400-4000 |
350-8000 |
250 |
80-1200 |
40-1600 |
600-6000 |
500-12000 |
300 |
100-1600 |
60-2500 |
1000-10000 |
600-16000 |
400 |
200-3000 |
120-5000 |
1600-16000 |
1000-25000 |
500 |
300-5000 |
200-8000 |
2500-25000 |
1600-40000 |
600 |
500-8000 |
3000-10000 |
4000-40000 |
2500-60000 |
